WARRANTY GEN.WARRANTY 2YEARS 200.000km

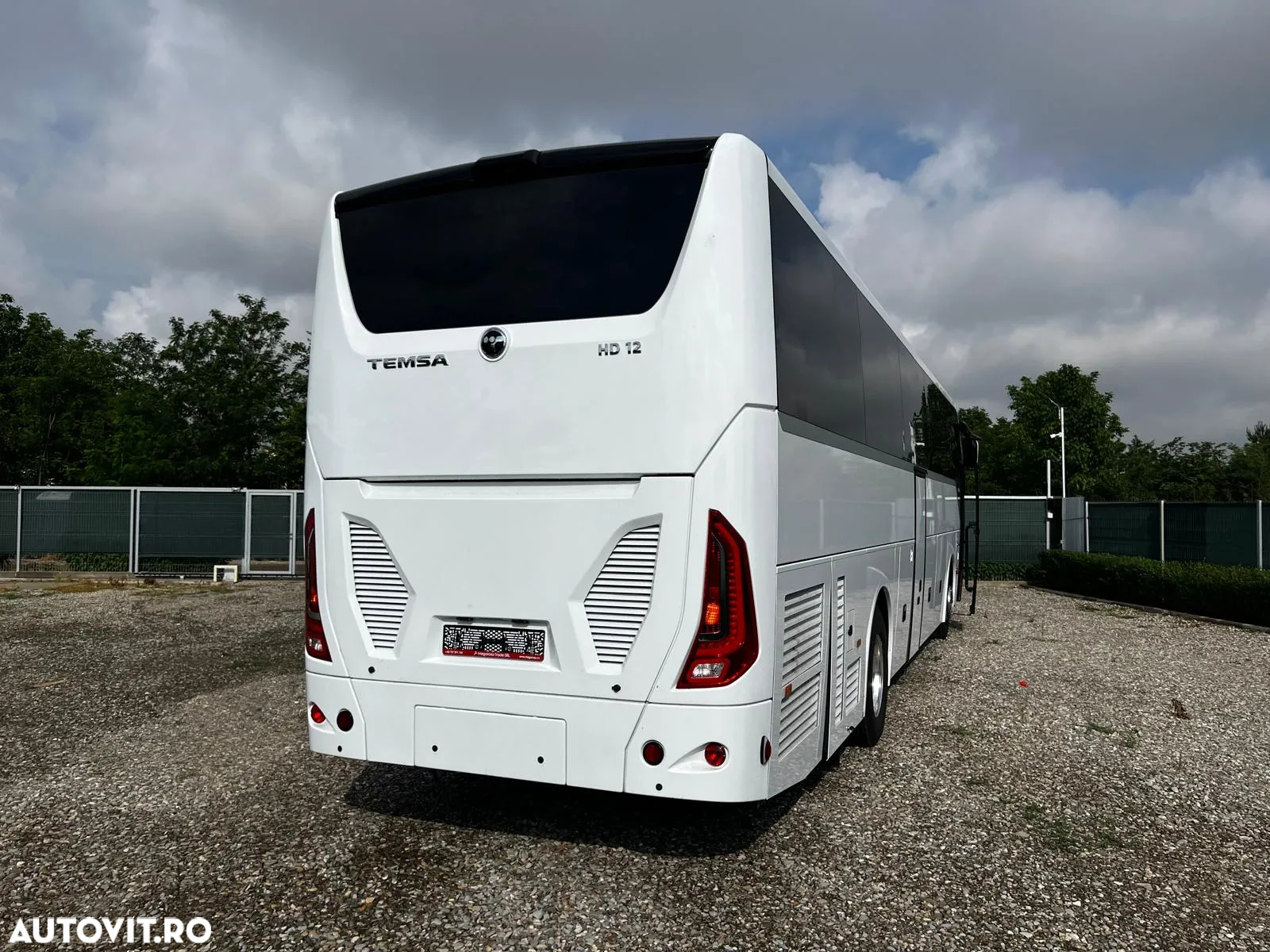

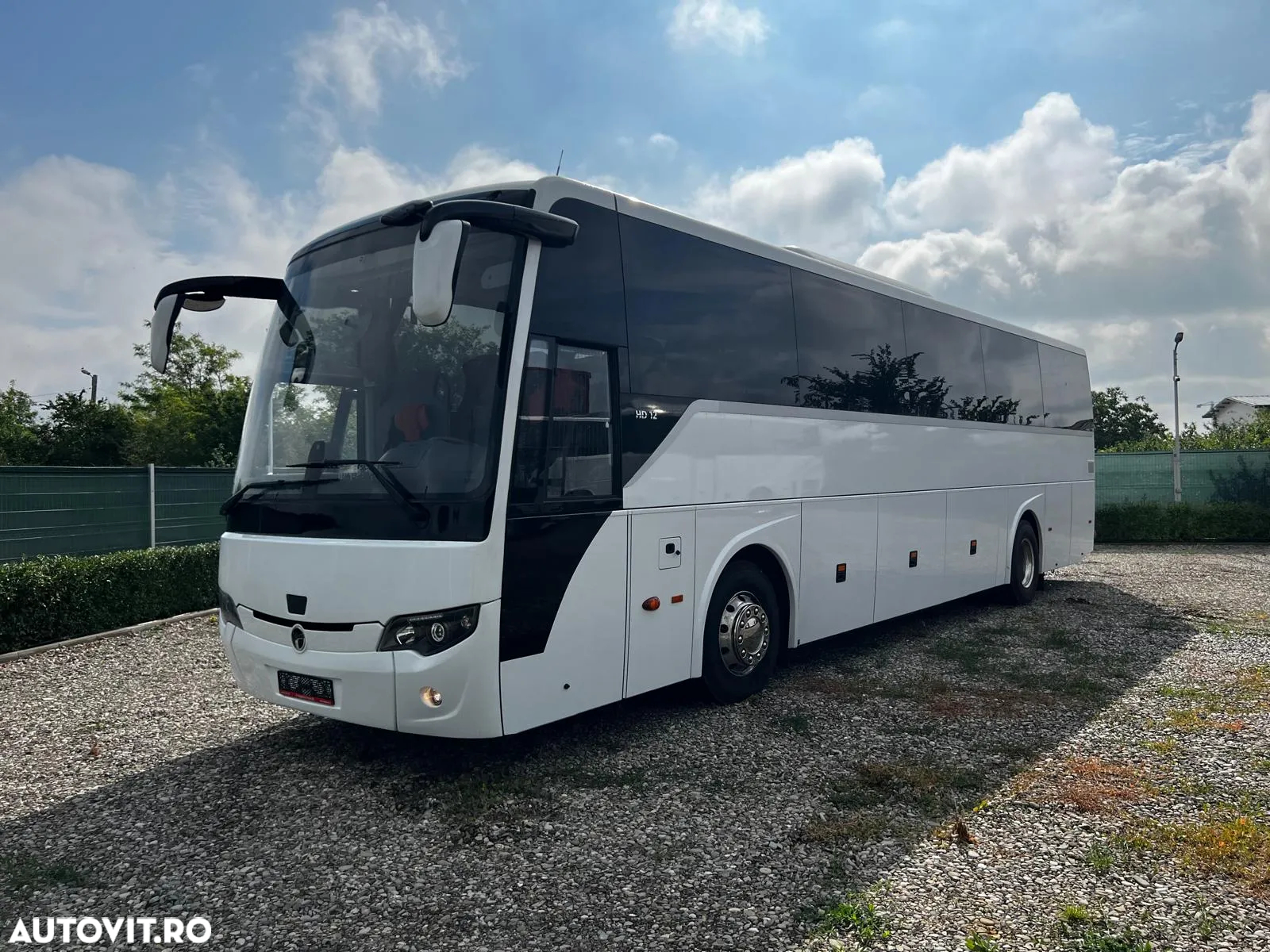

PRODUCT MODEL HD

MATERIAL CARBON STEEL (R66.02)

VEHICLE LENGTH 12276MM

VEHICLE WIDTH 2550mm

VEHICLE HEIGHT 3644mm (WITH AC)

TURNING CIRCLE 10800mm

WHEELBASE 6100 MM

FRONT OVERHANG 2766mm

REAR OVERHANG 3410mm

MIDDLE DOOR POSITION RAC 1990mm

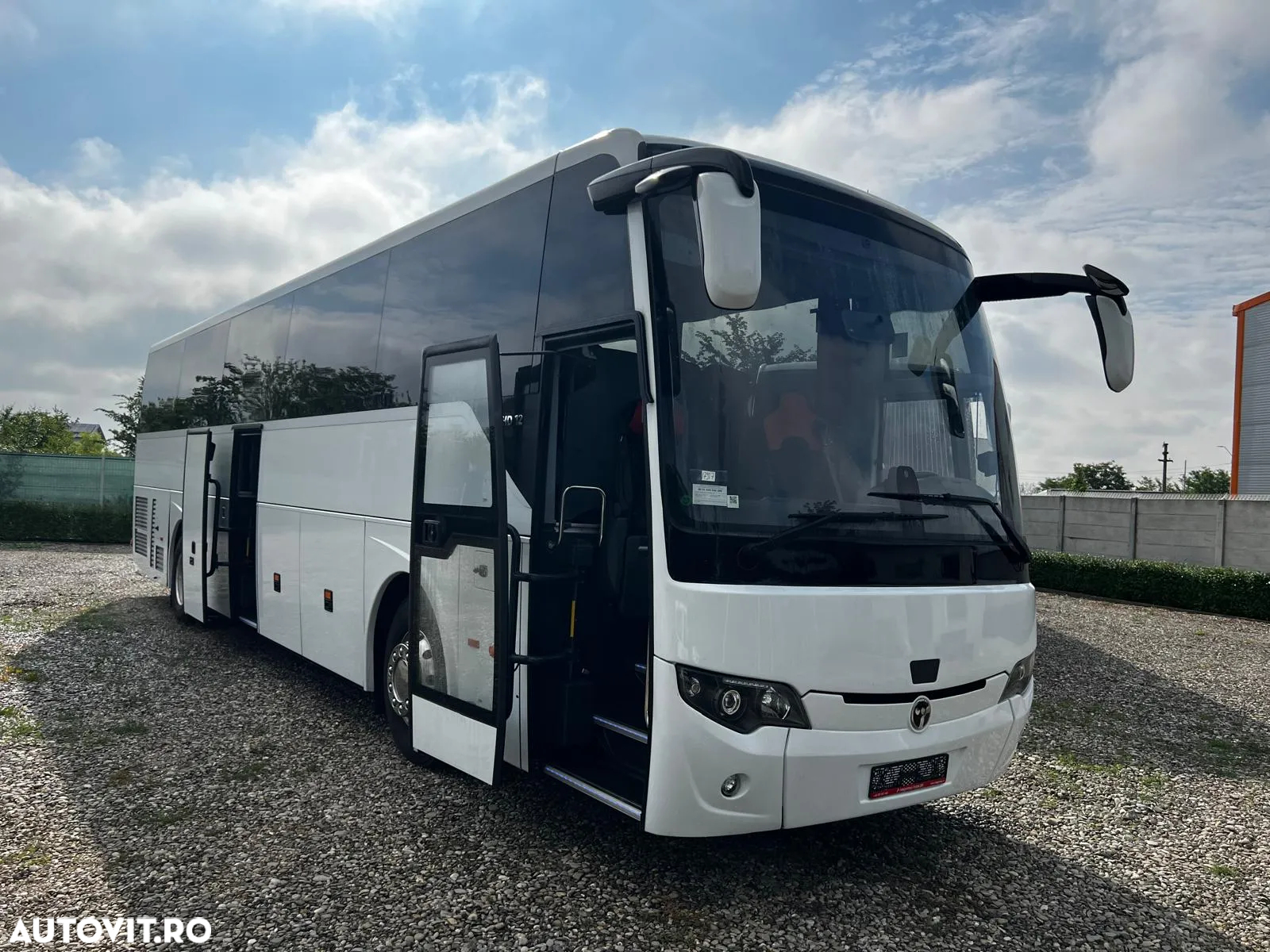

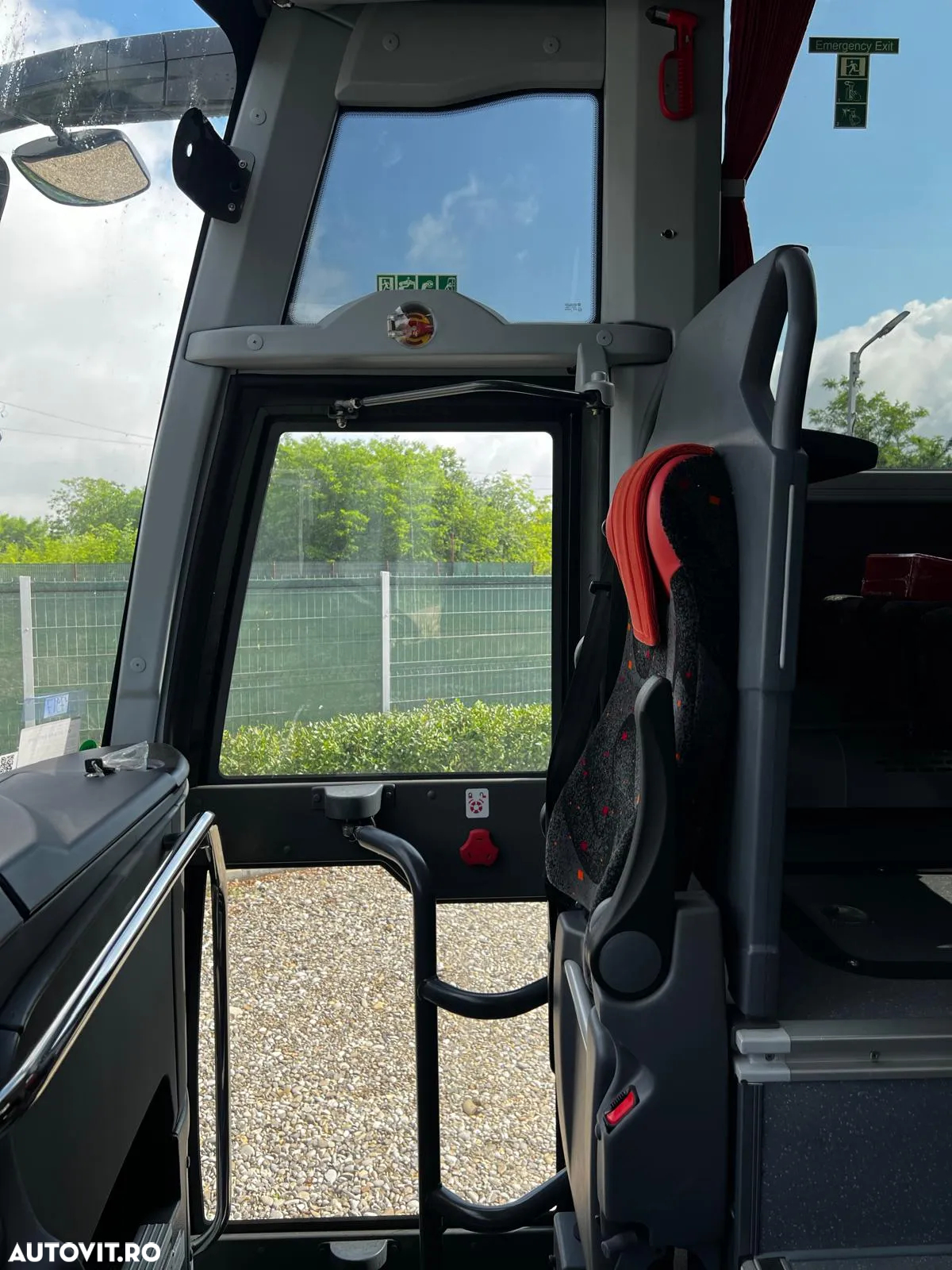

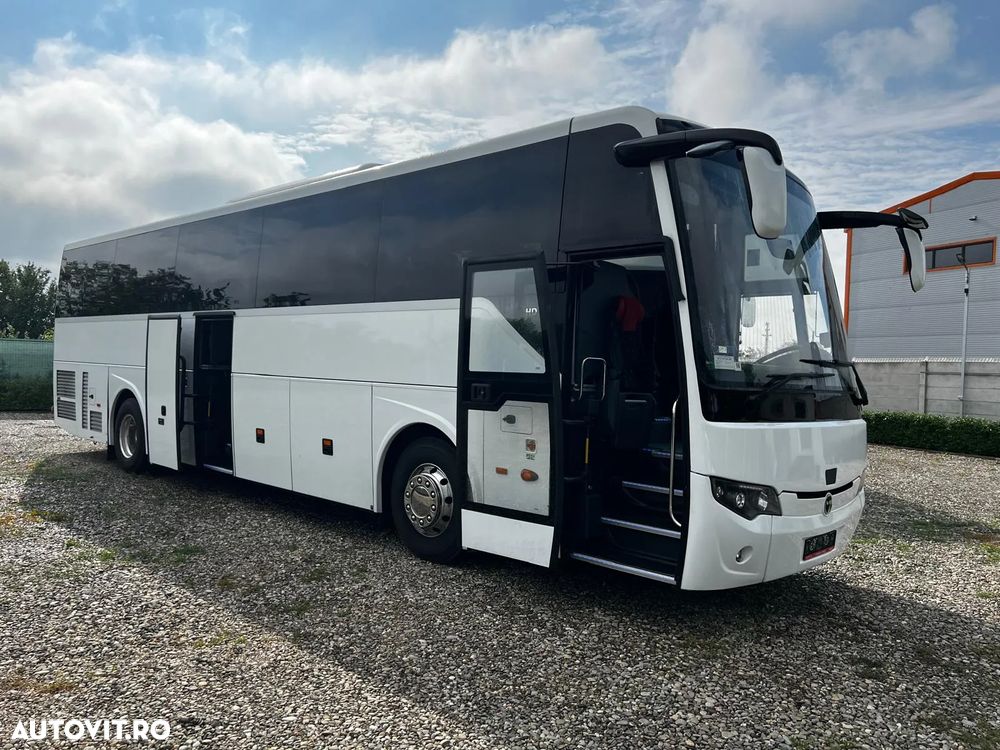

DOORS AND POSITIONS 1.DR,RH,1FLAP,OUTW.OP.DBLE,PN

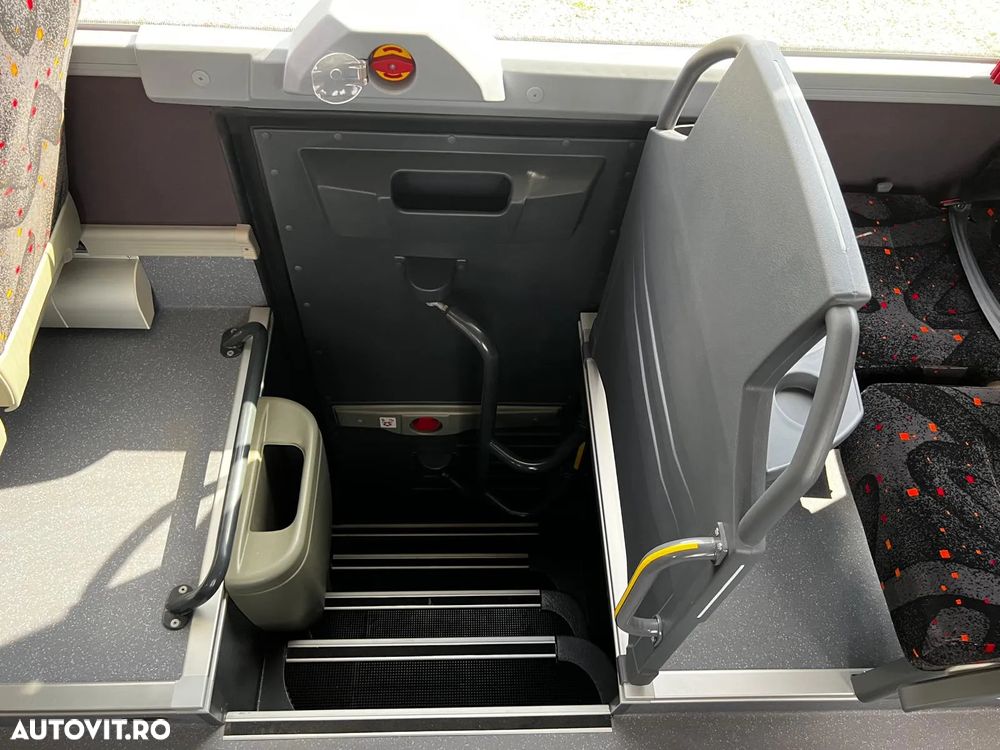

2.DR,RGHT,1FLAP,OUT OPEN,PNEU.

FRONT OVERHANG ANGLE 8 DEGREES

REAR OVERHANG ANGLE 8 DEGREES

STEERING POSITION LEFT-HAND DRIVE

ENGINE E6 DAF MX11-300kW

TRANSMISSION AUTO ZF 6AP2320C ECOLIFE

FRONT AXLE ZF-RL75E INDEPENDENT

REAR AXLE,DIFF RATE ZF A133 Diff. 3.36

ADDITIONAL AXLE NO

BRAKE SYSTEM ABS

AEBS

ASR (CAN BE DEACTIVATED)

EBS

ESC (ESP)

RE / INTARDER CONTROL BY PEDAL

ENGINE & POWERTRAIN ADDITIONS FLAME START

FUEL/WATER SEPARATOR,HEATED

OBD-E

TOILET TYPE AND POSITION NO

HANDICAPPED LIFT/RAMP NO

WHEELCHAIR AREA NO

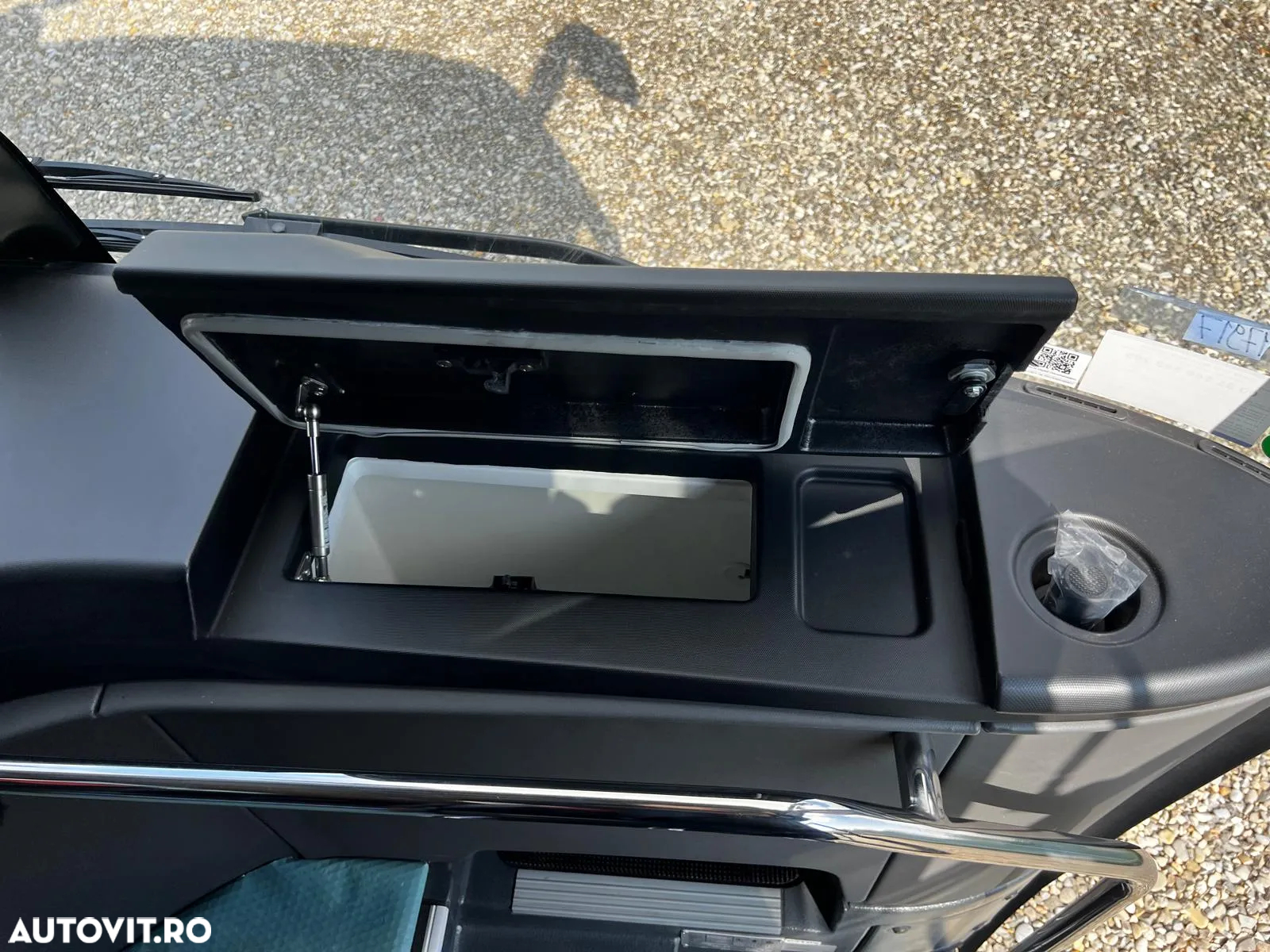

FRIDGE/KITCHEN/WATER HEATER BOTTLE COOLER IN DASHBOARD

SLEEPING COMPARTMENT NO

SIDE WINDOWS DOUBLE, %13

DRIVER WINDOW ELEC.CONT.DOUB.GLZD 1PIECE

WINDSHIELD 1 PIECE

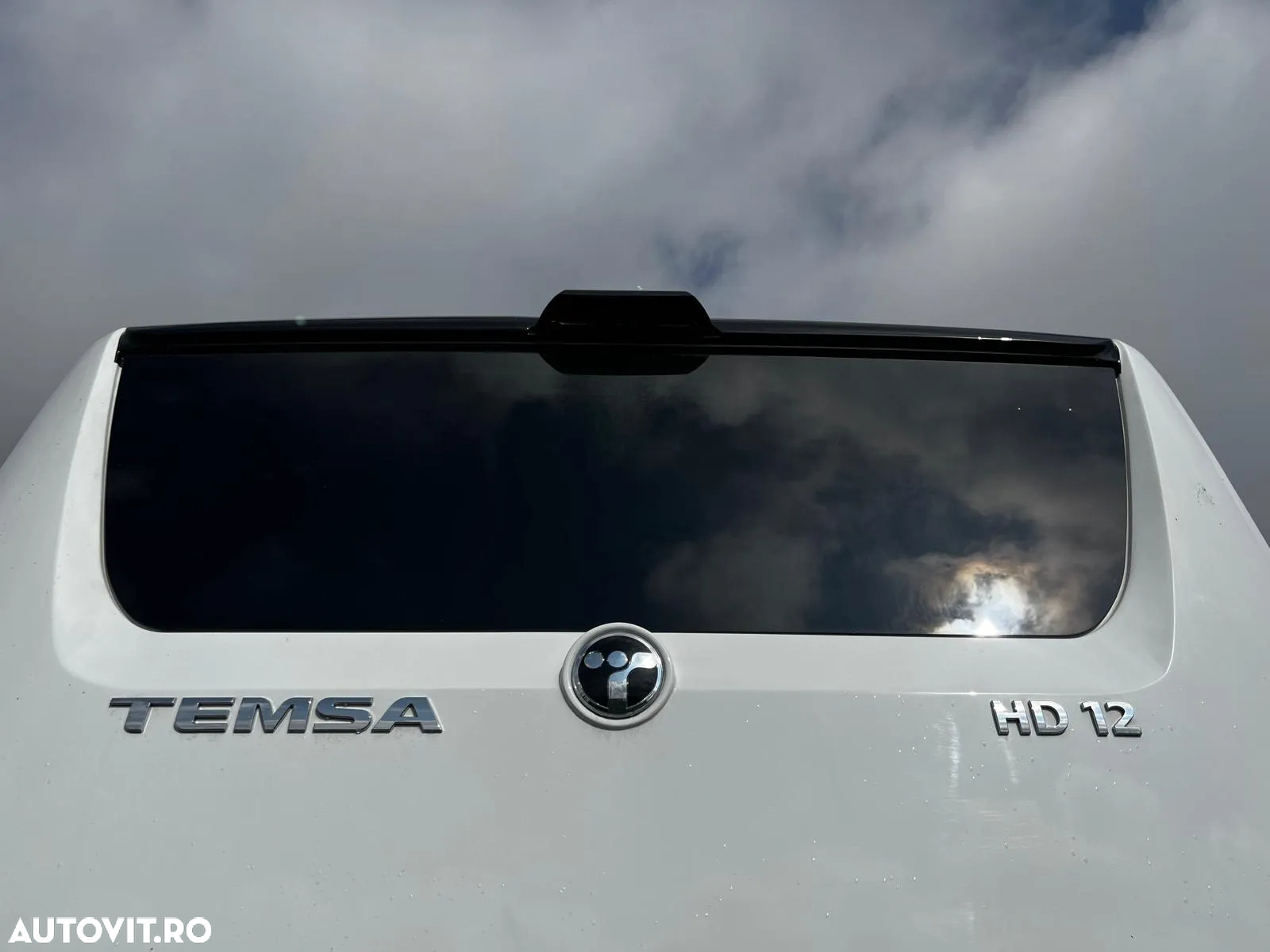

REAR WINDOW DOUBLE GLAZED,%17

AIR CONDITIONER VALEO R GLO.400S 41kW,ROOF HEA

PREHEATER NO

HVAC ACCESORIES AC DEFROSTER

AC FRESH AIR INTAKE

CONVECTOR

TIMER FOR PREHEATER

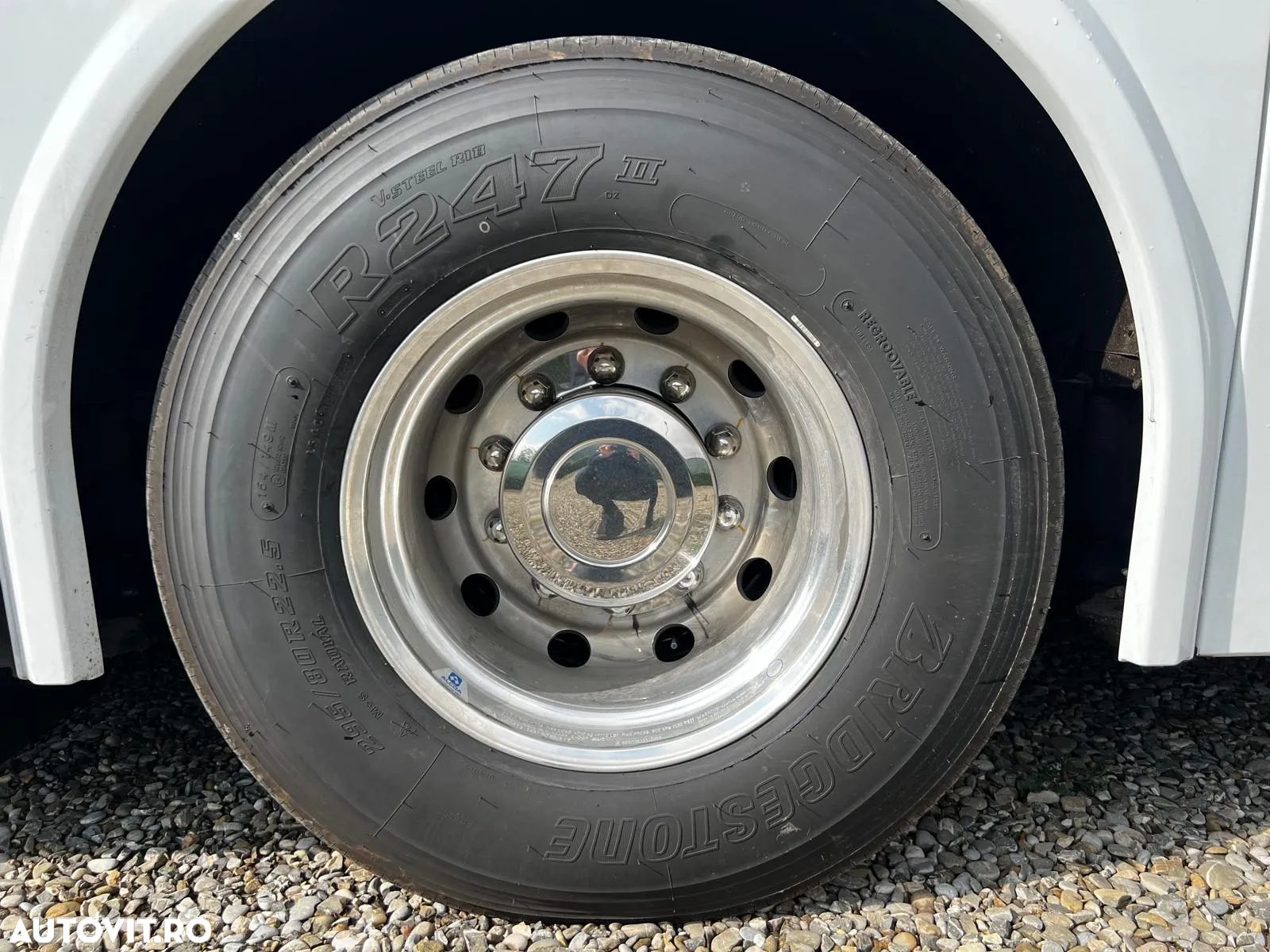

TYRES 7xBRID.295/80R22.5,R247 II,M+S

RIMS 7x ALCOA 9x22,5

SPARE TIRE/RIM YES

RIM COVER RIM COVER,ALUMINIUM RIM

BODY LIFTING BODY KNEELING

TRAILER HOOK FRONT TRAILER HOOK

SKIBOX NO

EXTERIOR MIRROR MEKRA,ELEC,CLASS 5&6

INTERIOR MIRROR INTERIOR MIRROR,DRIVER

LOCKING SYSTEM RANDOM CODED LOCK

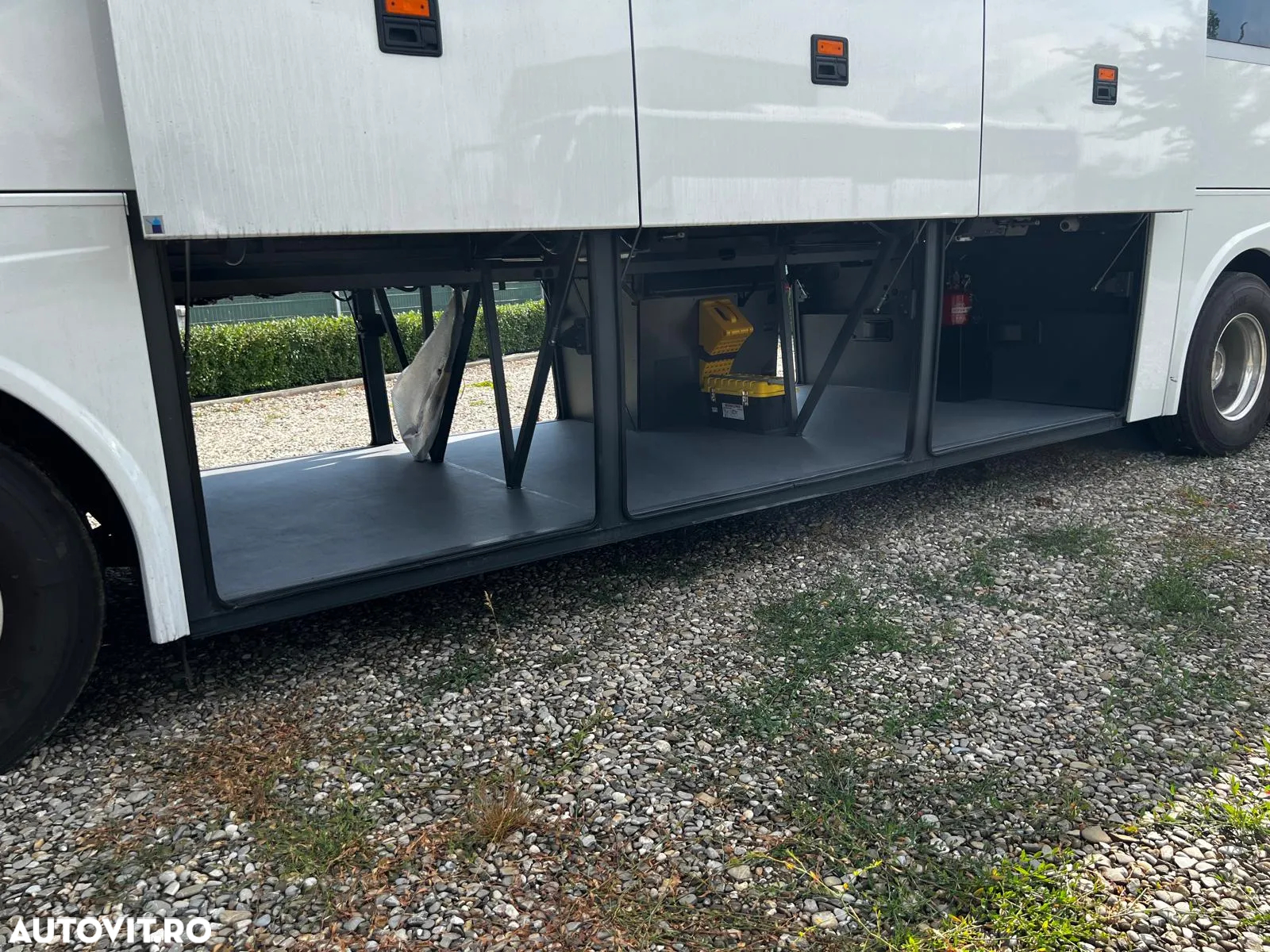

LUGGAGE LIDS MECHANISM AUTOMATIC TYPE

SAFETY/ASSISTANCE/WARNING CENTRAL TEST POINT

CIRCUIT SEPERATOR ON BATTERY

E.EXIT VALVE DISABLED

ENGINE ROOM LID OPEN WARNING

ENGINE ROOM,FIRE EXT.SYSTEM (Lehavot)

FIRE EXTINGUISHER,1X6kg

LANE DEPARTURE (LDWS)

LOW VOLTAGE WARNING

LUGGAGE ROOM EMERGENCY BUTTON

REAR PARKING SENSOR

REVERSE GEAR BUZZER

SAFETY HAMMER

ROOF HATCH 2ROOF HATCH MANUAL REAR+FRONT

SUNVISOR 2PIECES,ELEC.CONT. SUNVISOR

DESTINATION PLATE(S) NO

PASSENGER INFORMATION SYSTEM CLOCK, THERM.(FRONTHEADLINING)

INTERIOR EQUIPMENTS FIRST AID KIT INTERIOR TRIM RAL7040

STEP EDGE TRIM,LED,BLACK STRIP

WASTEBASKET,FRONTCORRIDOR AREA

WASTEBASKET,MIDD/RR STEP AREA

DOCUMENT LANGUAGE GERMAN

PARTITIONS BHND DRIVER, PLYURETHNE,W/TRAY

FR RIGHT,POLYURETHANE,W/TRAY

MID RIGHT,POLYURETHANE,W/TRAY

MONITOR FRONT MON.FIXED LCD BOSCH.19"

MIDDLE MON, FIXED LCD BOSH 19"

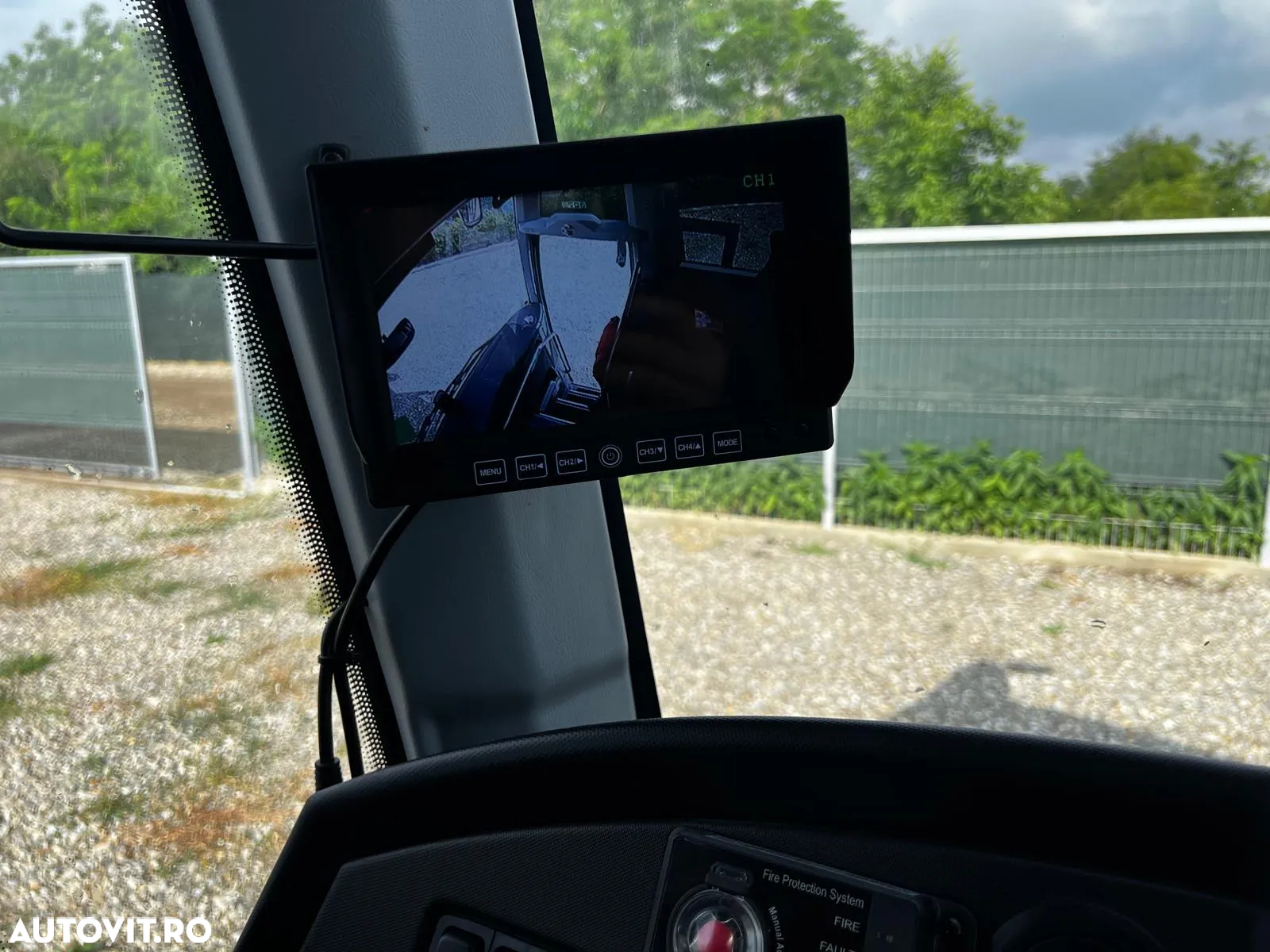

AUDIO AND VIDEO SYSTEMS CAMERA SYS (REAR+PAS&LUG.COMP)

FRONT MIC.INFOTAINMENT

INFOT.+DVD+MP3.BLUET.(DAB+)

MULTI ANTENNA

SWAN MIC.IN DRV.SEAT INFOTAIN.

ELECTRICAL EQUIPMENTS 2x150A ALTERNATOR

BATTERY CHARGER SOCKET,NATO

ENGINE START STOP,ENGINE ROOM

HEADLIGHTS DAY RUNNING LIGHT, DRL

FOG LIGHT, FRONT

HALOGEN HEADLIGHT

EXTERIOR LIGHTENING NO

BATTERY SPECIFICATIONS 2 x 12V 225Ah

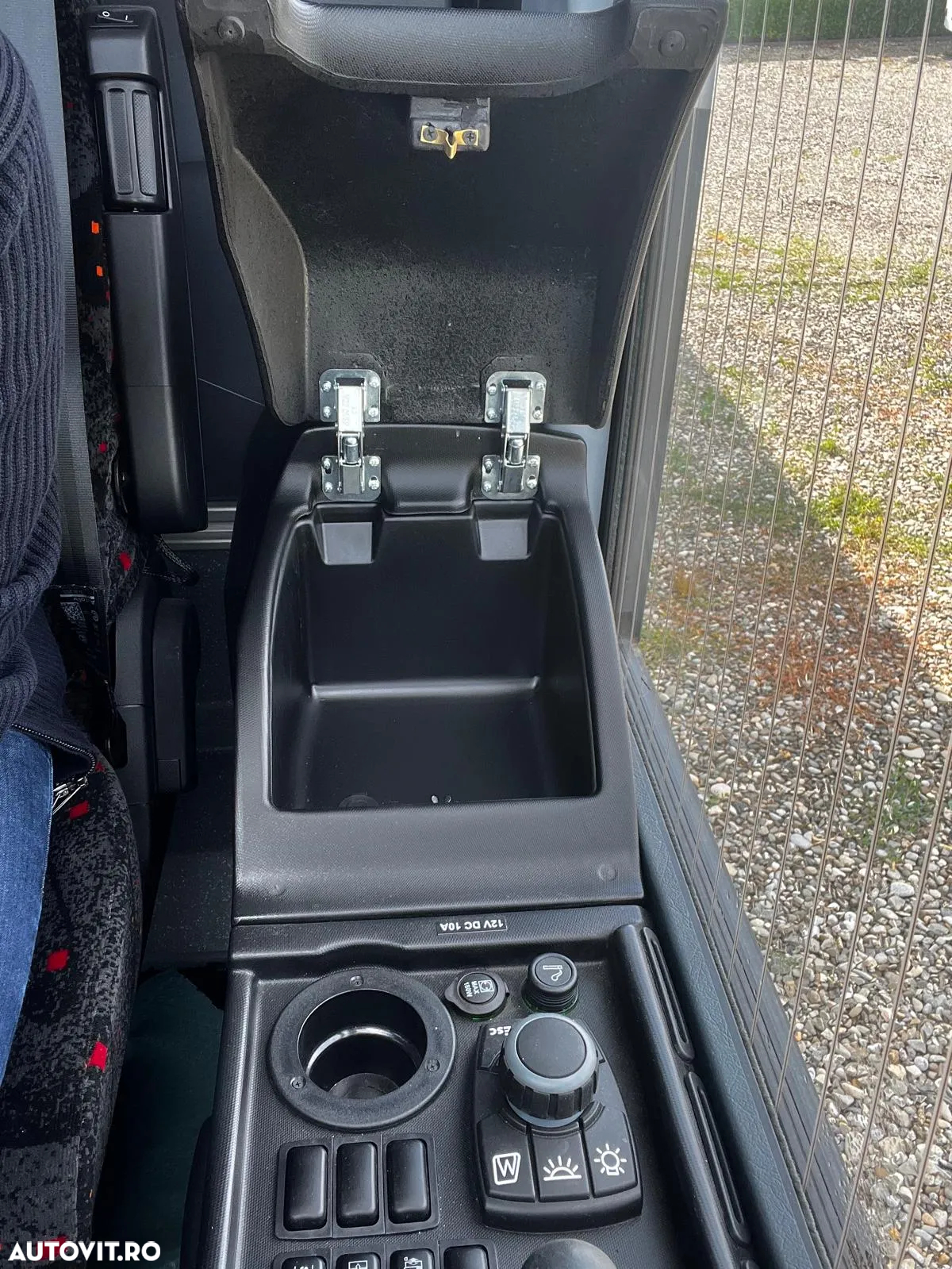

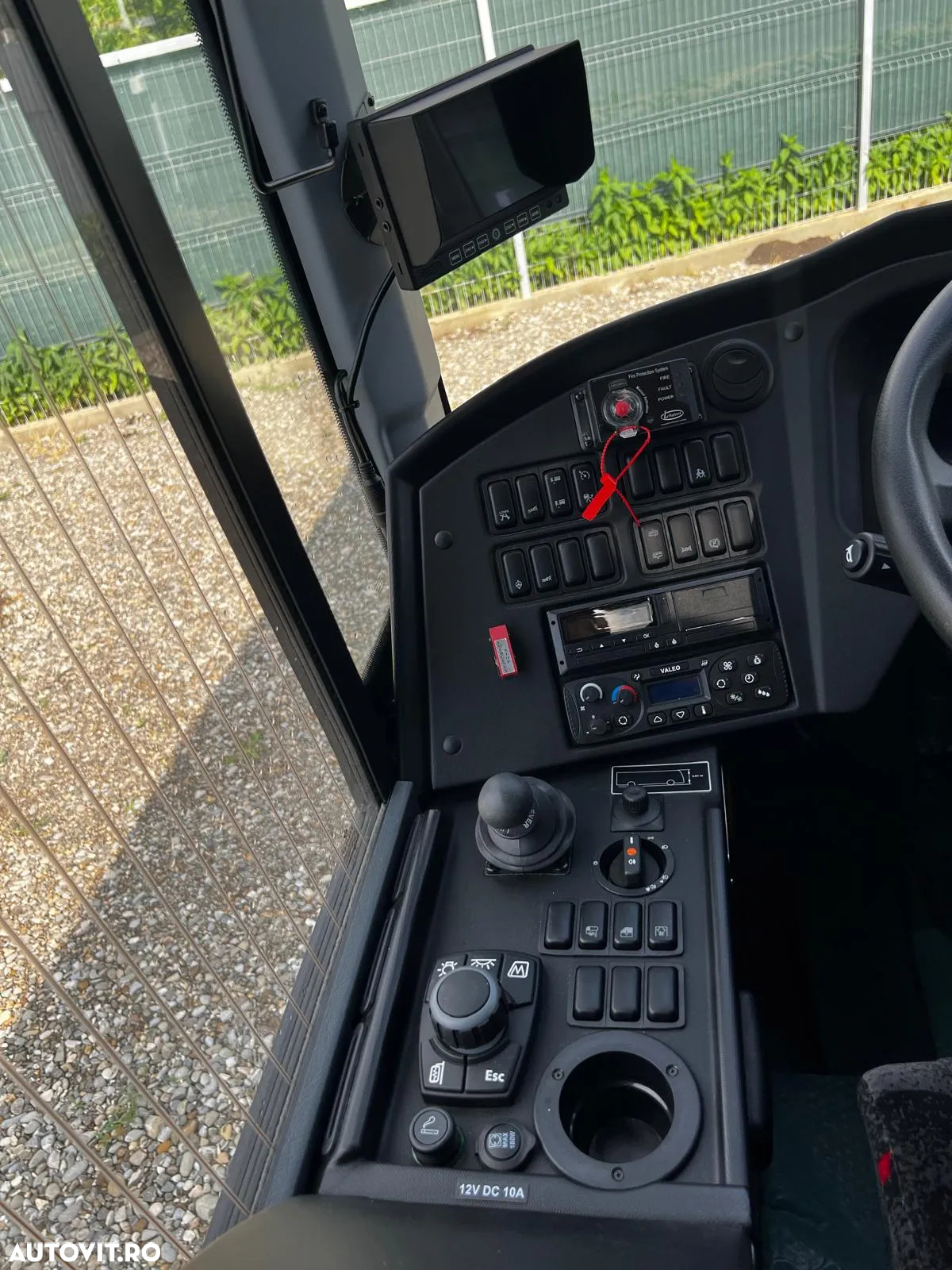

DRIVER WORKING PLACE 1X12V PLUG,LEFTOF DRIVER SW BX

2xUSB, LEFT OF DRIVER SW BX

INFO. AND CONTROL EQUIPMENTS NO

CRUISE SPECIFICATION ADAPTIVE CRUISE CONTROL

SPEED LIMITER 100KM/H

TACHOGRAPH DTCO 4.1 120 OHM 24V

ROAD ASSISTANCE KIT EXTRA MIRROR

JACK

TOOLBOX

WEDGE

FUEL TANK SPECIFICATIONS 527L POLYETHYLENE FUEL TANK

ANTITHEFT FILTER

REFILL NECK, AT RIGHT & LEFT

ADDITIONAL REQUESTS AIR HORN

ELECTRICAL HORN

ENGINE BOTTOM PROTECTION

EXTENSION ON MID DOOR ENTRY

OUTSIDE AIR CONNECTION, FRONT

OUTSIDE AIR CONNECTION, REAR

SCHOOL BUS LOCKING SYSTEM

CURTAIN DRIVER ROLLER SUNVISOR

PLEATED CURTAIN

FABRIC OF CURTAIN PRV23 CLARET RED

CARPET,STEPS ANTI-SLIP MAT

CARPET,DRIVER AREA ANTHRACITE BLACK (9507-08Y)

CARPET,AISLE NO

CARPET,UNDER SEATS NO

CARPET,LUGGAGE COMPARTMENT NO

COVER OF CEILING PANELS 9506-09 Cleanable Fabric

COVER OF INSIDE RACKS TSL00129Y (DARK GRAY)

COVER OF OUTSIDE RACKS 9506-09 Cleanable Fabric

COVER OF SIDE PANELS TSL00129Y (DARK GRAY)

FLOOR COVER,PASSENGER COMP. KKGE-GF072

FLOOR COVER,LUGGAGE COMP. KKGE-GF072

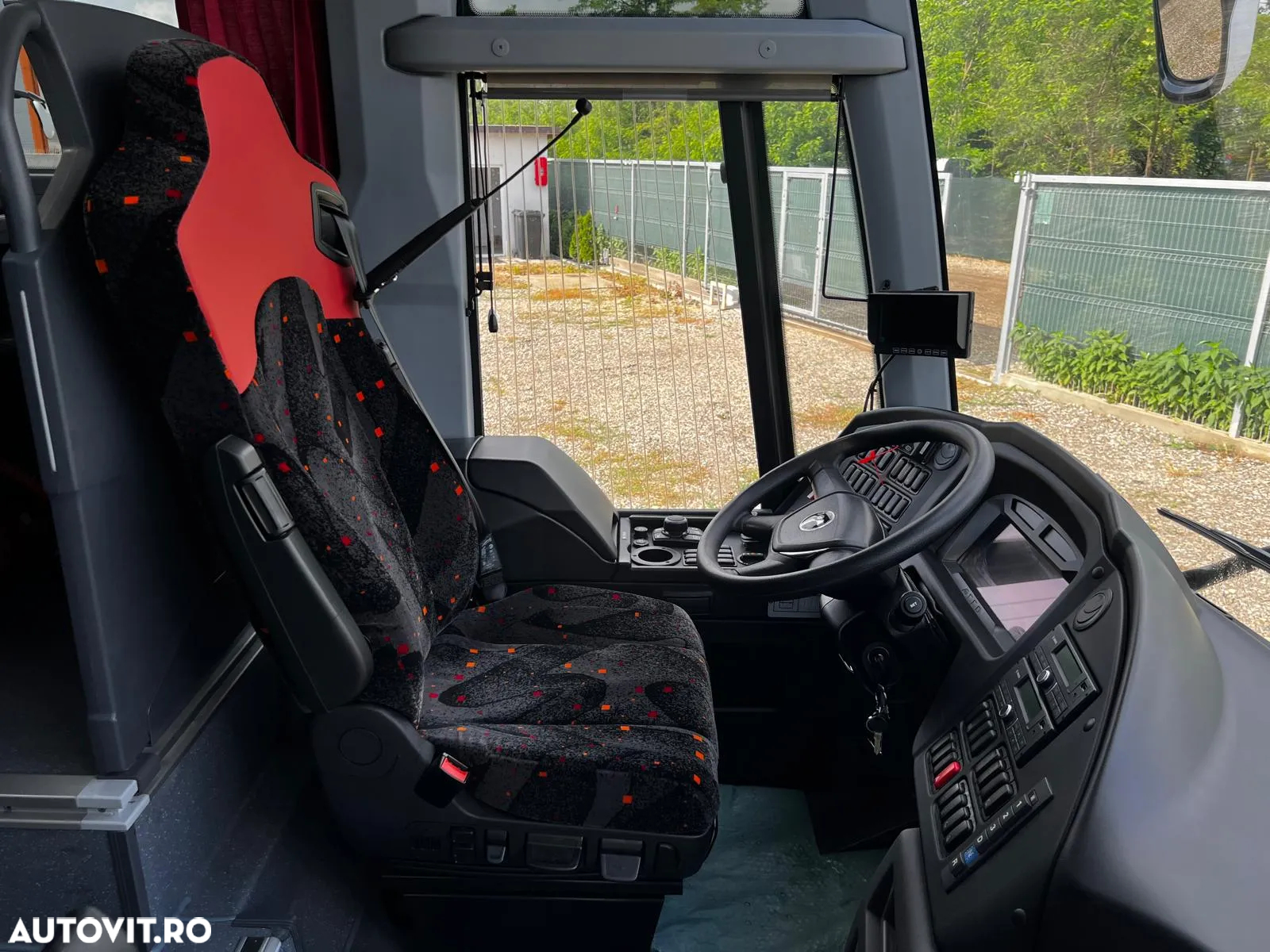

DRIVER SEAT ISRI NTS 2 (W AIRMATIC)

DRIVER SEAT OPTIONS 3P SAFETY BELT

LEFT ARMREST

RIGHT ARMREST

VIBRATION

ASSISTANT SEAT SEAT W/O KEY

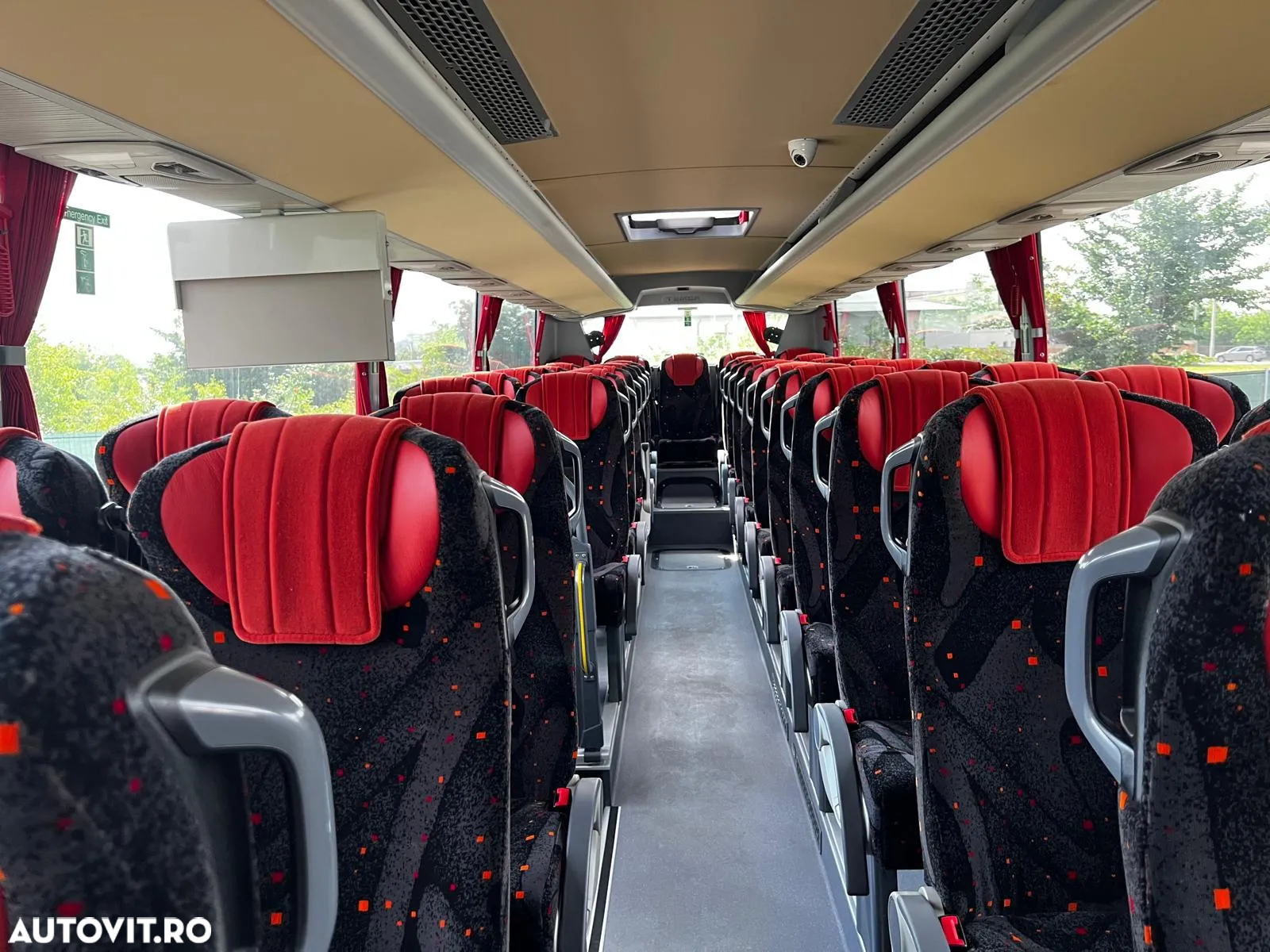

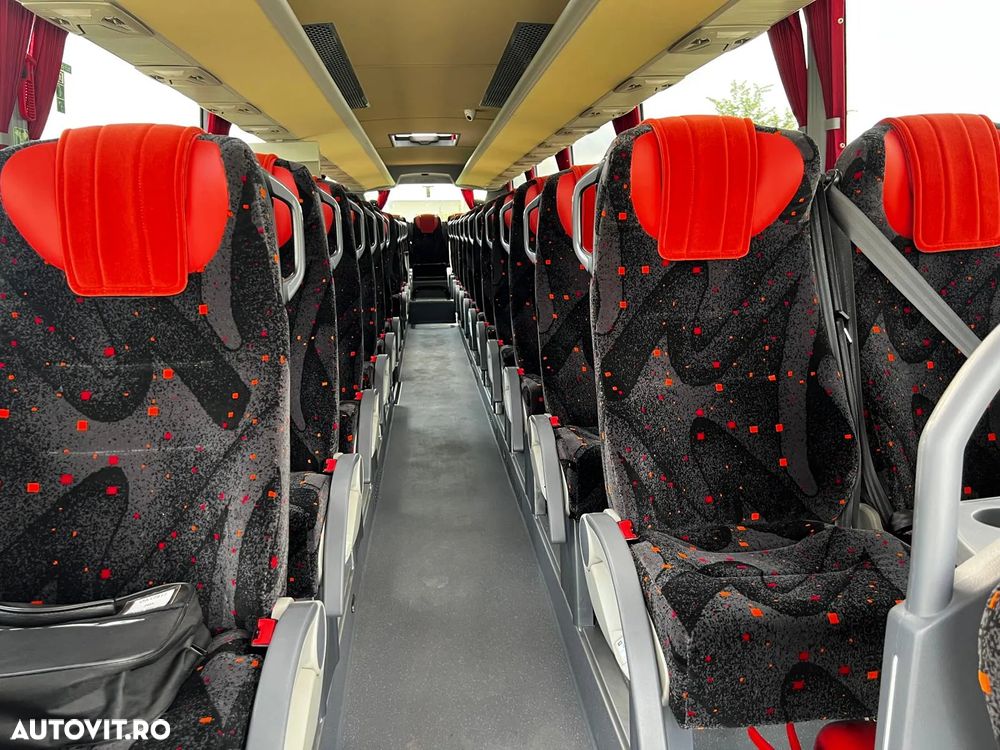

PASSENGER SEAT INOVA AGILE 4545

PASSENGER SEAT OPTIONS 3 POINT SAFETY BELT

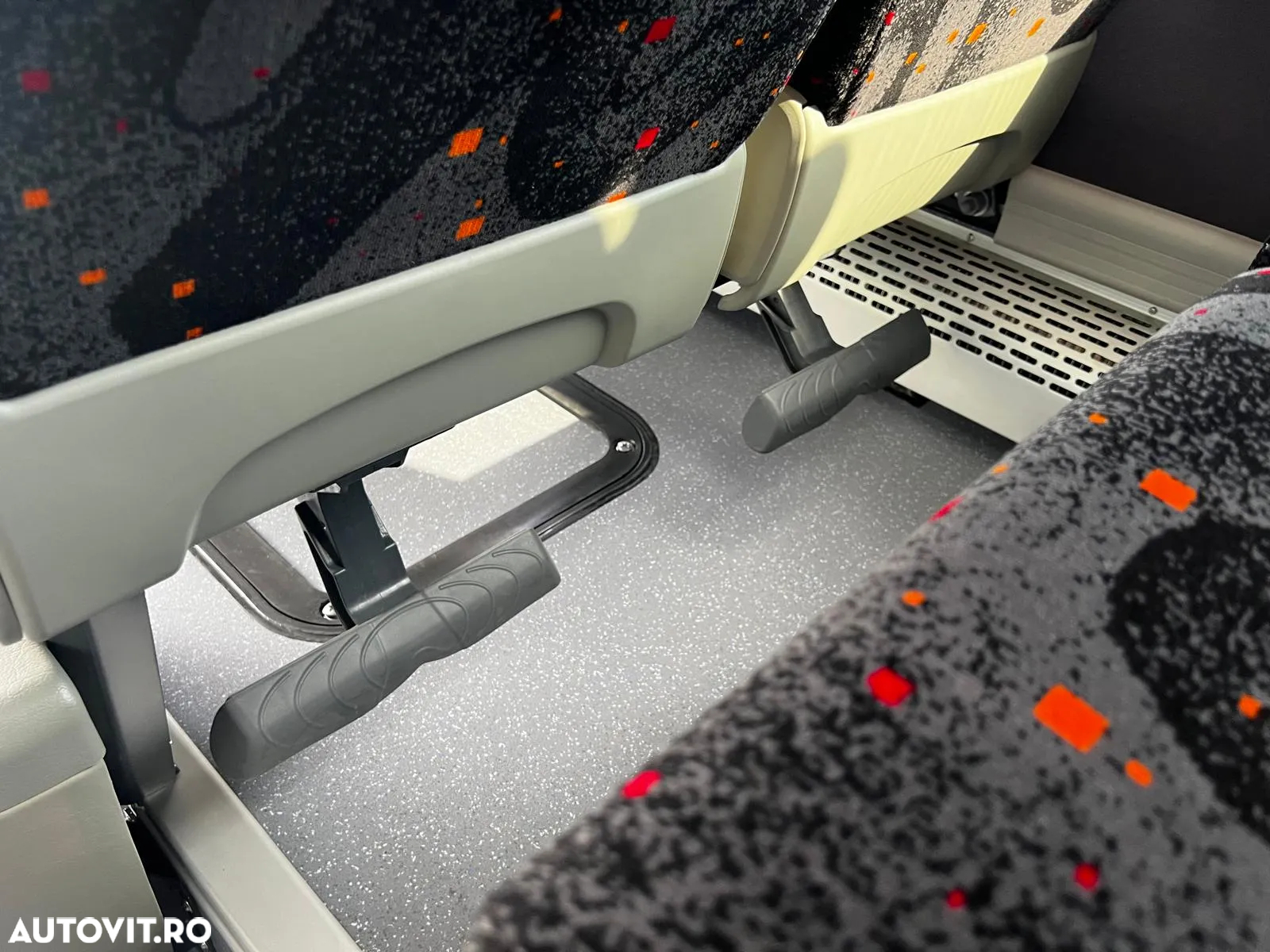

ADJUST. FOOT REST

AISL.ARMREST SID.COVER RAL7030

FOLDABLE ARMREST, AISLE SIDE

RECLINING

SLIDING MECHANISM

SOFT TOUCH

USB CHARGER (UNDER SEAT)

WIN.SID-AIS.SID.1VER.HAN.W.HNG

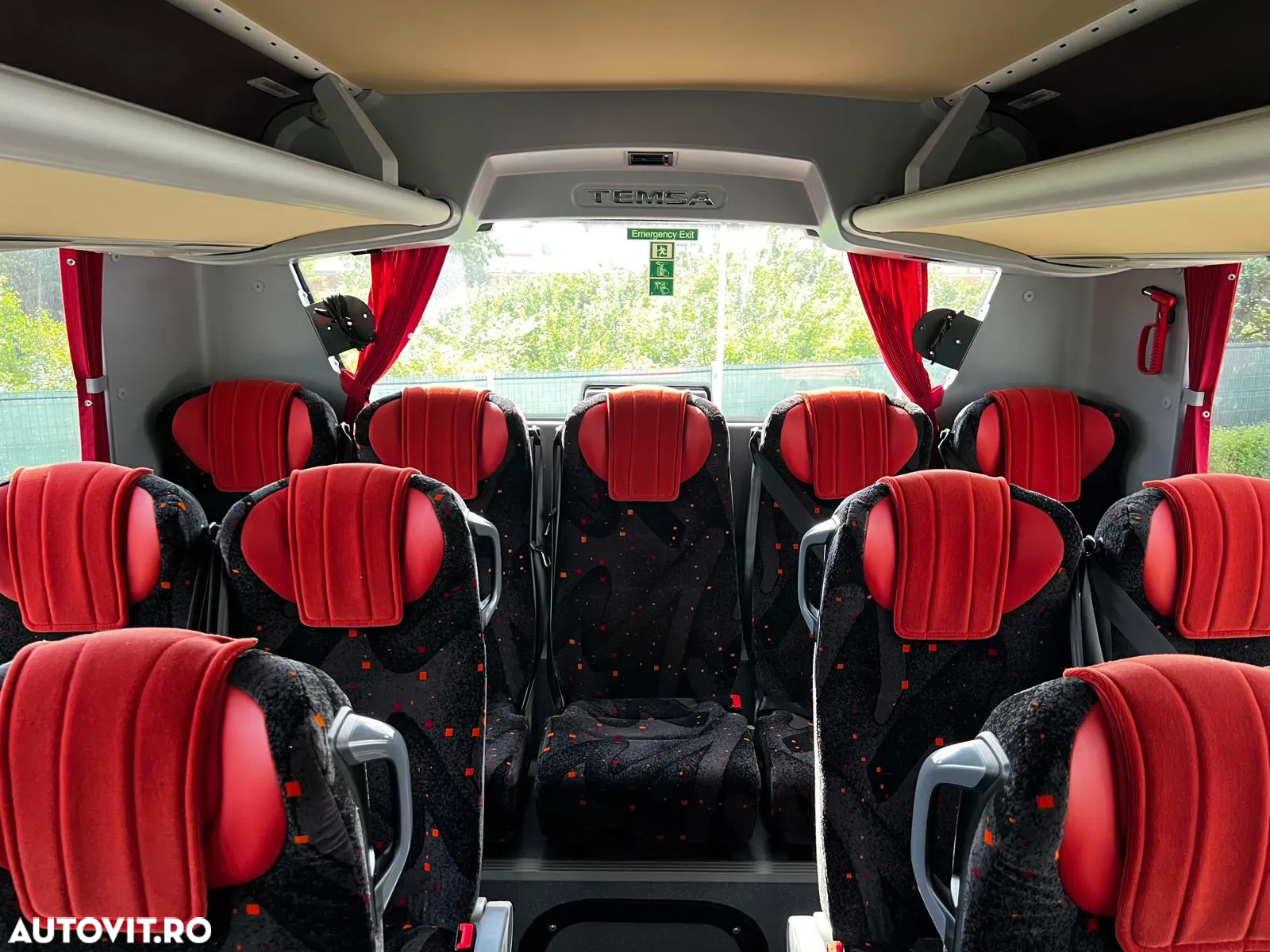

SEAT LAYOUT 13/12 (55 KİŞİLİK) ARK.5 (12m)

SEAT FABRIC - FRONT SF9504-15Y

SEAT FABRIC - BACK SF9504-15Y

SEAT FABRIC - SIDE SF9504-15Y

HEADREST-SEAT LT9504-47Y

FABRIC OF SEAT-PROFILE OTHERS

OUTER PAINT OPAQUE-WHITE (W9970)

MATERIAL NUMBER RHTK8L5175
